Electric
Body and Seamless stretch tester
Also available in
"MANUAL VERSION"

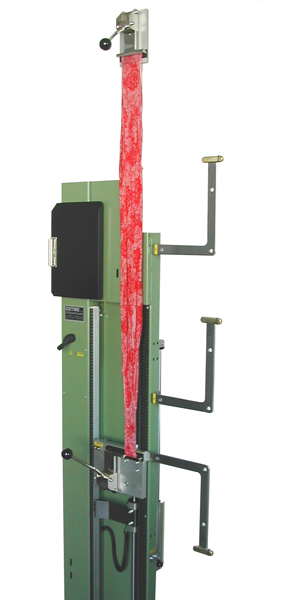

"ELECTRIC STRETCH TESTER" verifies the
length and the width of "seamless" underwear garments ( after the knitting
process).
The measurements are obtained through the descent of a
standard carriage group ( Kg. 4,650) at a speed kept constant by an
electric motor (with rechargeable batteries).
Technical Details
- 1: Locking clip
- 2:
Extension arms
- 3: Reading desk
- 4: Control lever
- 5: Inspecting
form
Technical Specifications
- Maximum measurable length: cm. 130 (mod. 130)
- Maximum measurable length: cm. 180 (mod. 180)
- Maximum width: cm. 165
- Battery
life: 8 h. approx. (it works also during battery recharging!)
- Supply: 12 V. (with rechargeable batteries)
- The electric testers, not being connected to any electric wire
while running on battery power, can be freely moved around in the knitting
department
Width and Length Measurements
|
|
Read on the black scale (by using the central arm B); on
the white right scale (by using the upper side arm A) |
|
|
Length measure: read on the white left scale, in relation with the ref.
arrow |
- Measurement of a length + 130 (up to 180)
Cetme - Measurement of a
length
Cetme -
Measurement of a length detail
