Electric stretch tester Man/Children

Also available in "MANUAL VERSION"
This "Electric Stretch Tester". The measurements are obtained trough the descent of a standard carriage group (kg 4,650) at a speed kept constant by an electric motor (with rechargeable batteries). It verifies the length and the width measures for the size control of man/children socks, knee-highs (and tigths: mod 315) in wool, cotton, acrylic, tennis type, etc ... for both the knitting and quality control.Available models:

Mod. 315: for SOCKS/KNEE HIGH AND TIGHT
Mod. 115: for SOCKS/KNEE SOCKS

Also available in "MANUAL VERSION" with manual release and carriage descent.
Technical Details

Panty Hose toe locking
Control level (Up/Stop/Down)
Panty Hose toe locking
Leg length (black scale)
White scale: total length - panty length
Carriage manual release (for manual working)
Carriage group (kg. 4,650)
Locking clip for: A) panty hose welt; B) toe socks
Extension arms
Leg - foot length reference (mobile arrow)
Total length - ref. arrow (white scale)
Locking clip

Technical Specifications

Standard stretching weight: kg. 4,650
Maximum measurable length Mod. 315 cm. 315
Optional 'Lift up + 100' : to measure cm. 100 more, till max lenght cm 415
Maximum measurable length Mod. 115 cm. 115
Minimum measurable width cm. 12
Carriage descent controlled by an electric motor (with rechargeable batteries)
Battery life: 8 h. approx. (it can also work during battery recharging!)
Supply: 12 V. - with rechargeable batteries
Manual working: the carriage has a manual release, to operate manually, if necessary
The electric testers, not being connected to any electric wire while running on battery power, can be freely moved around in the knitting department
SPECIAL EXTENSIONS ARMS: modified the widths of new born/baby socks measures Picture (1) - Picture (2)

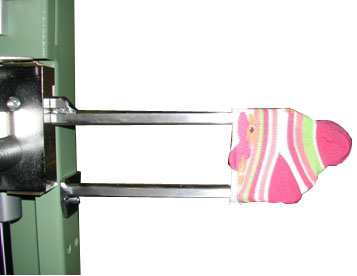

Special extension arms for babies

and children
(Picture 1)
Cetme - A small sock introduced on the special extension arms

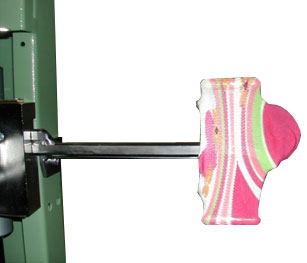

Special

extension arms for babies and children
(Picture 2)
Cetme - Width measuring

Width and Length Measurements

Width Measurements

Leg width : cm 19 (white scale/ arrow ref)

Length Measurements

SOCK LENGTH

	Foot length: cm 26,5 ( see arrow on the white scale)
	Leg length : cm 26 (see arrow on the close black scale)
	Total length: cm 52,5 (see arrow on the white scale)

& nbsp;

TIGHTS LENGTH

	Foot length : cm 20 (according to the heel / left black scale)
	Leg length : cm 215 (on rigth black sc./ ref.mobile arrow)
	Panty length : cm. 59 (white sc./ ref.mobile arrow)
	Total length : cm. 274 (white sc. /see ref, arrow)
	N.B.: starting from lock. 3: white sc.+ mt. 2 starting from lock. 1: white sc. + mt. 1 starting from lock. 12: white scale
